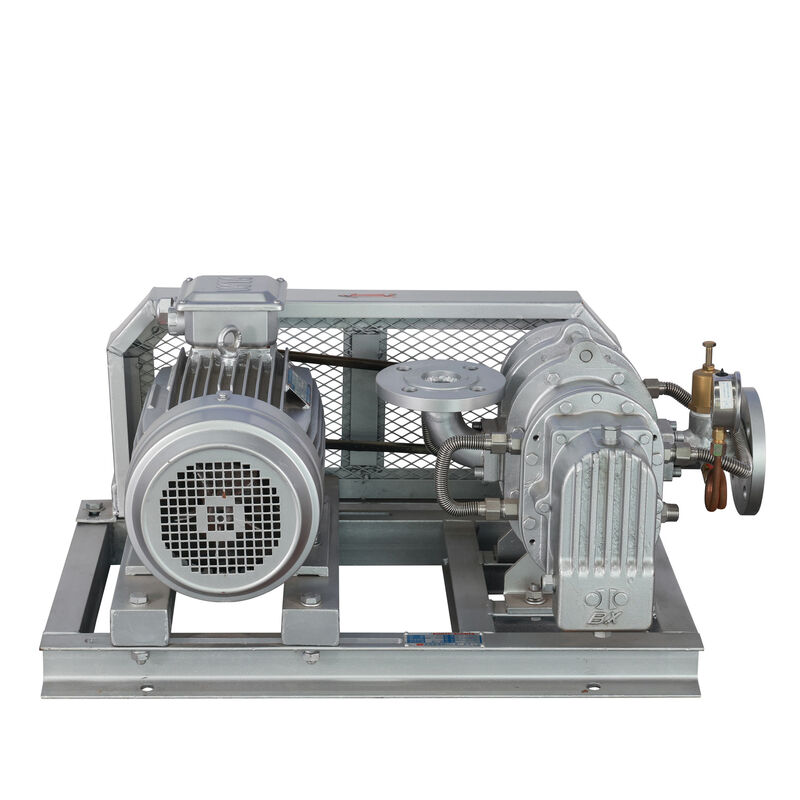

BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower

BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower

BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower
BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower
BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower
Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: BK
Certificación: ISO9001
Número de modelo: BX125
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Caja de madera exportada
Tiempo de entrega: 25 días hábiles
Capacidad de la fuente: 500 juegos/mes
Contacto
Descripción detallada del producto
Modelo: BX125 Puerto Dia.: 125 (5")
Velocidad: 850-1800 RMP Flujo de aire: 6,49-20,01 m³/min
Potencia del eje: 2,58-27,06 kw Presión: 10-70 kPa
Material del impulsor: Acero inoxidable Aplicaciones: Tratamiento térmico, limpieza de tuberías, gas especial
Ventajas: Instalación fácil, control inteligente, bajo ruido, pequeña vibración Potencia del motor: 11-22kw
Peso: 340KG Pernos de base: 6-M16*400

BX125  5'' 6.49-20.01 m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower 0







Product Parameters



Performance Parameters Sheet:

Type
Port Dia(MM)		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX125 125(5") 850 8.66 2.58 8.04 4.56 7.56 6.12 7.16 7.70 6.81 9.54 6.49 11.38
1000 10.45 3.04 9.83 5.36 9.35 7.20 8.95 9.06 8.60 11.23 8.28 13.39 7.98 15.03
1150 12.24 3.49 11.62 6.17 11.14 8.28 10.74 10.42 10.39 12.91 10.07 15.39 9.77 17.29
1250 13.44 3.80 12.82 6.70 12.34 9.00 11.93 11.33 11.59 14.03 11.26 16.73 10.97 18.79
1400 15.23 4.25 14.61 7.51 14.13 10.09 13.72 12.69 13.38 15.72 13.06 18.74 12.76 21.05
1500 16.42 4.56 15.80 8.04 15.33 10.81 14.92 13.60 14.57 16.84 14.25 20.08 13.95 22.55
1650 18.22 5.01 17.59 8.85 17.12 11.89 16.71 14.96 16..36 18.52 16.04 22.09 15.74 24.80
1800 20.01 5.47 19.39 9.65 18.91 12.97 18.50 16.32 18.16 20.21 17.83 24.10 17.54 27.06




Outline Dimension


BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower 1BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight(kg)
BX125 5" 11~22KW 1300 900 450 150 425 818 378 405 1635 143 20 355 230 625 165 1000 18 6-M16x400 340

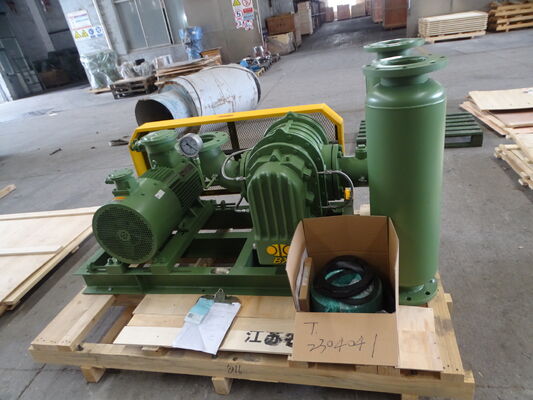

Sample Use
BX125 5'' 6.49-20.01 m³/min 0.1-0.7 kgf/cm² BK Stainless Steel Air Roots Blower 3



FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
